Travels: 500 x 400 x 220 mm
-- U-axis: +/-1.3 (+/-32 mm)
-- V-axis: +/-1.3 (+/-32 mm)
-- Table size: 23.2 x 20.2 (590 x 514 mm)
-- Max. part size: 31.5 x 23.6 x 8.5 (800 x 600 x 215 mm)
-- Max. operating part thickness: 8.4 (213 mm)
-- Max. taper angle: 15°
-- Min. wire diameter: 0.004 (0.1 mm)
-- Max. wire diameter: 0.012 (0.3 mm)
-- Machine weight: 4,400 Lbs. (2,000 Kg)
-- Tank capacity: 116 gallon (440 liter)
-- Filtration method: Paper (2)
-- Filtered particle size: 3 um

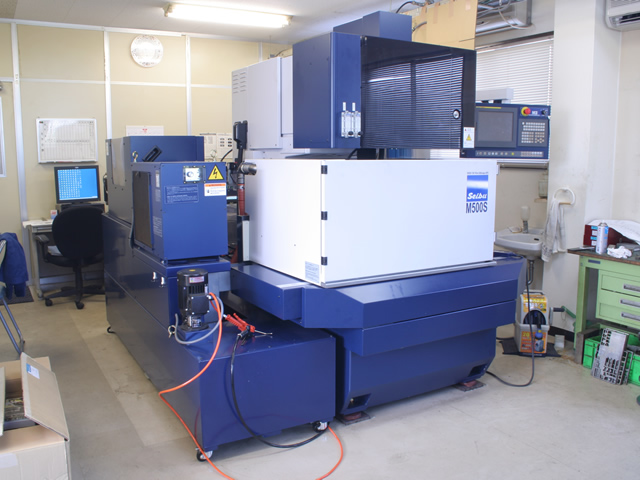

線切割加工機

---

---
